Early Prototype of Problem-solving Lessons using Desmos Overlay

So, I’m in the very early stages here, both in terms of thinking and development, but here’s my attempt at a problem-solving activity using desmos. I realize that this is focused on very mechanical aspects of problem-solving here (picking knowns and knowns, doing calculations, etc), but I’m just getting started here.

The things I’m trying to capitalize here is on students getting feedback from other students that is helpful (but not too helpful), accessible at the right time (it’s ready for you when you want it), and easy for students to give.

So here’s my not so-great prototype:

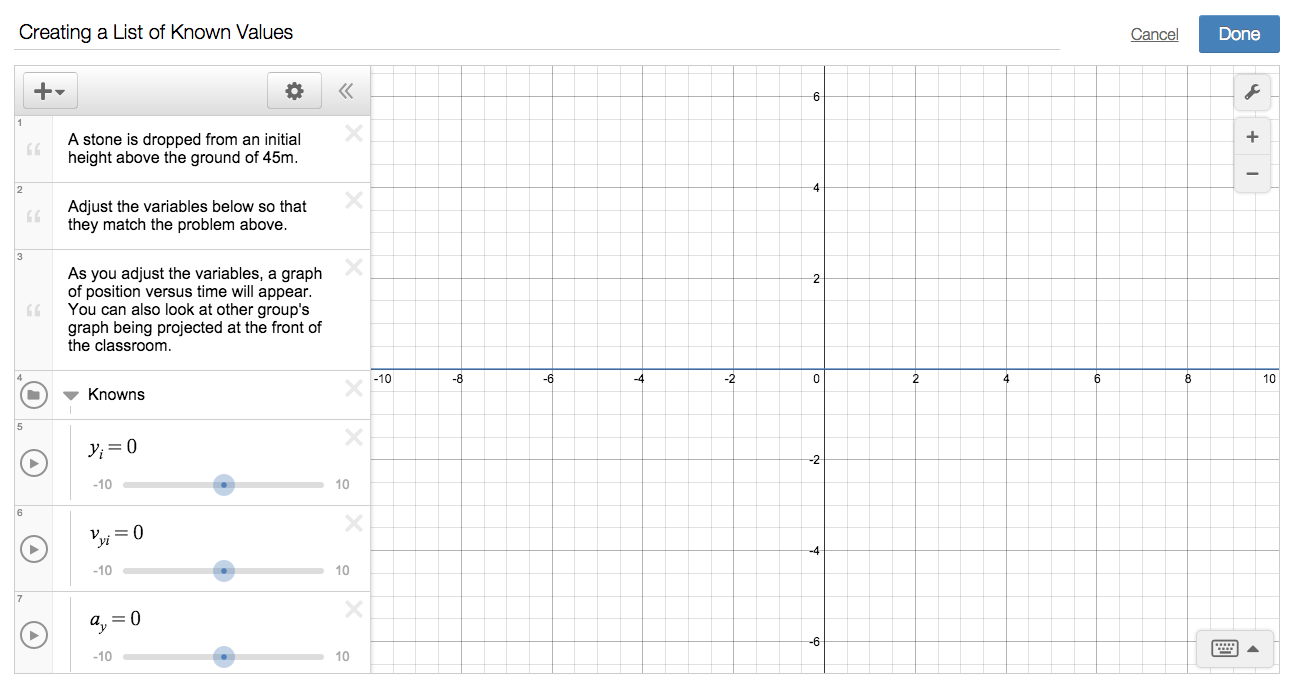

Part 1: Students get a kinematics problem, and they are asked to adjust adjust their known information about the problems using sliders. A graph of position versus time is automatically shown for the values they pick.

Screen Shot 2015-09-16 at 2.03.54 PM

Feedback: Projected at the front of the room is an overlay of all students’ graphs. Students get to see the overlay of graphs, (not the values that each group picked).

Students might notice their graph is different than others. Or the teacher might notice that half the class has one graph and half has a different.

Part 2:  Students get asked a question. The question students get is, “Explain how your group knew what each of these values should be based on what you know about the stone.”

Feedback: As students write their answers, other group’s answers immediately appear below their own.

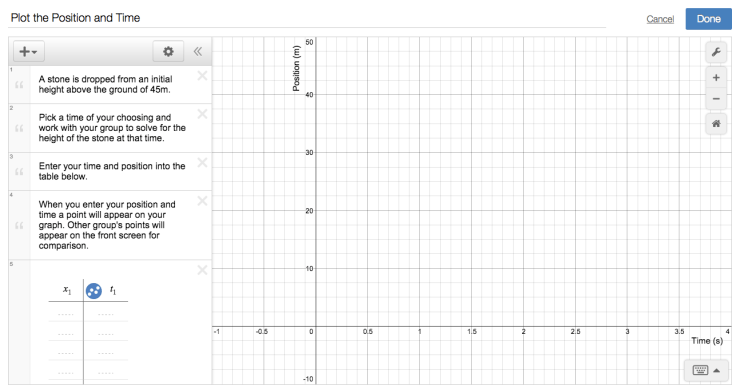

Part 3:  Students get a new blank graph, and are asked to pick a time and then calculate the position. They enter their time and position in a table, and their point appears on the screen.  You might want students to do 2-3 points depending on time and how many groups, or after first point is done to look at the overlay and to pick a point that hasn’t been done yet.

Screen Shot 2015-09-16 at 2.16.31 PM

Feedback:  Students get to see an overlay of all the points. I’m imagining a couple scenarios: Two students pick the same time, but get different positions.  Or their is an obvious outlier to the trend.

Part 4:  Students get another question that asks how they went about solving for the position. Students get to see what others students’ said.

So like I said, this isn’t great, but here are some things I like:

  1. Students get feedback about their known values by how the shape of their graph compares to the shape of their graph (not the values themselves)… [Side: makes me thinking follow up question might be about why shape of graph makes sense for the problem]
  2. Students get a tiny bit of choice in choosing what time to pick. They get feedback about how their answers compare to others, but it’s not simple as “I got 3. What did you get?” Once again it’s in the graph.
  3. In having choice and a graph, students might choose to explore interesting questions (negative times, big times).

Some obvious improvements:

  1.  Pick a better problem.
  2.  Ask better follow up questions.

But I’m more wondering about structure. So tell me, what structurally would make this better in terms of student engagement, student interaction, or student feedback? Or tell me why this structure is completely awful, and suggest a totally different structure that would be better. I spent ~10 minutes making the activity file and ~15 minutes writing this blogpost, so I won’t have my feelings hurt.

First Exam: Success Rates in the 2 Stage Kinematics Problem

On our first test, students had a two-stage constant acceleration problem. It was not terribly difficult (starting from rest and the quantities given were all integers), but two-stage problems always mess up students. Students were given the times for each stage and the acceleration in the first stage.

Here’s two interesting break downs

Break down by Correctness of Velocity vs. Time Graph

In knight’s book, they call a setup to 1D acceleration problem a “Visual Overview”. In the visual overview, students must include a pictorial representation and a list of values and may include a motion diagram or a graph sketch.

  • If students had a correct velocity vs time sketch, they had a 90% success rate in finding the total distance.
  • If students had no velocity vs time sketch, they had a 60% success rate in finding the total distance.
  • If students had an incorrect velocity vs. time sketch, they had 0% success rate in finding the total distance.

Breakdown by Approach to Finding Distance

Knight’s book teaches both graphical methods and equations methods. In class, I really encouraged working the problem both ways.

  1. If students approached using graphical method, they had a 83% success rate.
  2. If students approached using equations, they had a 61% success rate
  3. If students approached using a table, they had a 50% success rate (only 2 students)
  4. If students approach was mostly math scribbles, they had a 0% success rate.

This particular problem was very amenable to graphical approaches, because time information was given. I’m not sure these two trends would hold for every problem, but Kelly O’Shea would definitely say here, “Graphical Approaches for the Win!”

Edit:  Of course, students who solved in both with equations and graphs had a 100% success rate (4 students)

Common Errors:

While not having a good “setup” was a common error, other common mistakes included

  • Implicitly treating all or part of the problem as a single stage of constant acceleration (the trap in using equations)
  • Using constant velocity approaches for constant acceleration (e.g., using v= d/t and/or treating acceleration as velocity)
  • Confusing position and velocity in a graph or calculation

Overall the test offered to few challenges for some students (1/3 As, with three 100s), and offered two few opportunities for some students to display partial understanding (2-3 really low failing grades). Average was a high C, and Median was a low B, which seems about right for the first exam.

Reflection on LA Seminar: Pressing for Reasoning and More than Echo-Probe-Toss

A couple thoughts after the LA seminar tonight:

Pressing for Students’ Reasoning vs. Pressing toward Correct Reasoning

One of the talk moves that students read about before today was “pressing for reasoning”, in which the instructor asks the student to explain their reasoning. I learned as students were analyzing their cases that some students interpreted the talk move “pressing for reasoning” as asking a question that steers the student toward the right reasoning.

For example, in a case that one group was analyzing, there is the following exchange:

Student:  I said that the acceleration is negative, because the object is slowing down.

Teacher:  Actually, that’s not quite correct.

The students could correctly identify this kind of reaction as “denying”, and they came up with, “What can you say about the direction of the acceleration?” as an alternative response to denying. They identified this as a “pressing for reasoning” talk move. I was a bit surprised, but we had a good conversation about the difference between “steering questions” which aim to guide them toward the correct reasoning versus question that get students to articulate their own reasoning. What makes sense about their initial interpretation of “pressing for reasoning” is I think their idea about what counts as “good question”. One property of a good question I think they were thinking about was that it quickly gets students back on track– and so it makes sense that a good “pressing for reasoning” questions would use reasoning to help guide students toward the right track.

I’m so glad we did these cases, because it provided an opportunity for me to learn about how they were thinking about these talk moves, and what implicit ideas about teaching/learning were framing their understanding of the talk moves. At least one other group has this interpretation of pressing for reasoning.

At the end of the cases, one student in class kept asking about other great cases: (1) What if a student has right answer and right reasoning? What else can you but confirm? [We mostly agreed that you should ask others students to weigh in before possibly confirming] (2) What if one student has wrong answer, you probe for reasoning and get wrong reasoning, and ask others who also agree with same wrong reasoning? [We talked through some specific scenarios, but I mostly emphasized that at this point, any help, hints, steering question, or guidance you give will be in the context of having actually gathered information about what trouble they were having. ]

Echo-Probe-Toss becomes..   Be Encouraging / Help Make Connections / Keep Everyone in the Game

As usual, the echo-probe-toss game was fun, but also very challenging for both me and the students. Students struggle to remember each stage and how it works, especially for the first couple of students to go. I struggled with when and how often to interrupt. One of the things I think after today is that it can really help in the future if I give very clear directions about where we are restarting from after a pause. It caused unnecessary confusion when I wanted them to restart one place, but I didn’t say it specific enough. It’s such a silly thing to waste cognitive effort on that very clear directions are just needed.

In general, when students were echoing, they often did not use tone of voice to indicate interest, nor did their probing feel super encouraging.This is totally to be expected, because it’s their first time. Also when tossing it back to the class, students often very narrowly re-voiced students’ ideas and asked very generic prompting.  But it provided a good opportunity for me to step in and model how it could be differently.

It’s hard in the blog to express how I used tone to be interested and encouraging, but I do want to about how my “toss backs” were different than students, so here are some examples:

1. Re-voicing to Emphasize Reasoning rather than the Answer:

One clicker question was, “Which of the following topics in physics is the worst?” A student said, “Static Equilibrium was the worst, because it was so boring”.

Student Facilitator Revoicing:  “Angela says Static Equilibrium is the worst, because she found it boring. Does anybody agree or disagree?”

I paused to offer an alternative re-voice: “Interesting. So, Angela is saying that one reason why a person might think a topic is the worst is because it’s boring. Who else has disliked a topic in school because it was boring?”

While I emphasized that my re-voicing drew attention the reasoning, students added that my move helped each move to build on the next.

2. Summarizing Multiple Ideas before Prompting for More Participation

When students re-voiced before tossing it back to the class, they often just summarized the idea that was just said. This made it feel like a list of ideas that were unrelated. I took a few opportunities to model how to summarize multiple ideas:

“OK, so we heard from Valerie and Jason who both think that trees gain weight through the soil, because as the roots go deep in the ground, they pull nutrients up…  We’ve also just heard from John, who added his idea about how trees have leaves that breathe in air, and in doing so pull in carbon dioxide. ”


“OK, so one thing that can make a topic the worst is it being boring. Another reason why a topic might be the worst is that we don’t really understand the topic.”

3. Re-voicing to Clarify a Complex Idea:

We had gotten a little into a debate about the role of sunlight… and one student was trying to explain their idea that sunlight provided the energy that the tree used to pump up water and nutrients from the soil. I was facilitating this conversation at the time and modeled two things, first, I asked Nathan to restate his idea for everyone.  I had actually zoned out and not quite heard what he said. Then, when he was done, I said, “OK. So I think I get Nathan’s idea. So like, If I had an electric pump that could pump water out of my flooded basement, I would probably need to first plug it in to the electrical outlet. The outlet would provide the energy to pump the water up out my basement. What Nathan seems to be saying is that in the case of the tree, sunlight provides the energy for the tree to pump up the nutrients out of the depth of the ground. Its the nutrients that cause the weight gain, not the sunlight, which just powers the whole operation of bring nutrients up out of the soil.”

We were running late on time, so the day didn’t end as smoothly as it could, but we started a list of things I was doing that seemed different than just “echo-probe-toss”… Here’s the list we made

  • Being Encouraging and Acting Interested
  • Helping Make Connections Among Ideas
  • Reframing the Conversation
  • Steering away from Unproductive Tangents
  • Keeping Everyone in the Game

All and all it was a good LA day. I still wish I was doing a better job with time management so that we could end days closure rather than a rush.

Learning More about Using Desmos in a Physics Context

With broken ankle, I’ve been spending more time learning how to use desmos. I’m not really using these with any students yet, just messing around and seeing what’s possible.


Here is a simulation for a projectile motion question we are going to work later this week. It shows the trajectory and velocity vectors (and components) for a dog jumping. You can just hit the play button to watch, or you can change the parameters by opening the “parameter” folder. For example, in class, we are going to vary the angle.  @Desmos on twitter showed me that I could add a picture (hence the dog).

Dynamic Problem Representations:

Here is a problem a student was working on from our text: You can adjust the parameters to change the problem, or even shade the area under the curve, and adjust your guess for the final time.

Manual Curve Fitting for Labs:

Below is a draft of what a free-fall lab might look like in desmos. One thing you can do is use sliders to manually “fit”, which is pretty cool. But you can also have desmos find fits.


Activity Builder:

I’ve also more recently played around with their activity builder, which is pretty cool. In the activity builder you can create dynamic “worksheets” for students to work through, where you can ask questions, present texts, or give them graph/math to work with. Students access your worksheet at student.desmos.com and type in a code that is associated with your activity.

The really cool thing about the activity builder is from the teacher side: you get real-time visuals of student work. You can look at thumbprints of students graph or answers to check progress and compare, or you can enter into an individual students screen to look more closely. When students answer questions, you can also choose to have other students’ answer come up (or not).

But the really, really interesting thing is the “overlay” function, where you can take ALL the students’ graphs and overlay them on top of each other.  You can project the overlay to students.

Below I built a draft of a desmos activity where students could enter in data and then graph acceleration vs. force. Each group would have a different mass, so the slopes of their lines would vary. Since I can show an overlay of all students’ graph, I can project this back to the class. The activity file has questions students answers about their own graph as well as the overlay of graphs, which others groups can see as they get answers.

Screen Shot 2015-09-14 at 3.53.58 PM


I think this setup is pretty awesome–making collaborative lab experiences more meaningful by making formative assessment easier, increasing student-student interactions about the content, making comparisons real-time and easy.

So far, I’m pretty excited to continue working with desmos, both to see what I can do with it and to see in what ways it might be a useful technology in my classrooms.

Learning Assistant Seminar: Talk Moves and Practicing Echo-Probe-Toss

Pre-class Reading Summary:

On Monday, in my learning assistant seminar, students will have read a chapter mostly about two things:

First: “Common Reactions to Student Answers”

  • Confirming (“That’s correct! Good Job”)
  • Denying (“Nope, not quite.”)
  • Ignoring (“Hmm… Anybody else have an idea?”
  • Arguing (“Well, it couldn’t be that because _____”)

Second: Alternative talk moves:

  • Asking student to say more (“Say more about that!”)
  • Pressing Student for Reasoning (“Why do you think that answer makes sense?)
  • Re-voicing the Student Idea (“OK, so George thinks that _____”)
  • Asking others to weigh in (Does anybody either agree or disagree with George’s idea and can say why?)
  • Asking others to re-voice (“Does any body think they understand George’s idea and repeat what his idea was in their own words?)
  • Prompting for More Participation (So, we’ve heard from a few folks who said ___. What else has an idea about what could happen?)

This section also includes a revisiting of wait time, which they have already read about, as well as a few other things.

Examine and Share Out Cases (30 minutes):

Our day will begin with groups of 2-3 each getting a “case” (just a two line transcript, where a student gives an answer and a teacher responses).  They have to first identify the type of “reaction”, explain what possible downsides that reaction might have, and then second propose an alternative response, identify what type, and what possible benefits there could be. I have each case as handout for the group.  But I also have a powerpoint, so students will just have to be prepared to talk about the common reaction over the power point slide, but I will have them prepare on whiteboard for their alternative response.

If it seems productive or time-permitting, I have following whole-class discussion questions prepared:

A.  What feelings–either our own or from students– lead us to “react” to student answers rather than responding more deliberately?

B.  What other feelings (possibly about student as learners or ourselves as teachers) can we nurture to help us “respond” more deliberately?

[With both of those questions: What will make it hard for you personally to respond rather than react?]

An alternative discussion question (if it’s leaning this way is):  Is it ever OK to respond by confirming or denying? If not, why not? If so, what’s a situation where you think it would be OK?

Brief Direction Instruction (15-20 minutes)

Triadic Dialogue:  I will briefly review this common form of classroom interaction (from a previous reading), where a teacher initiates dialogue with a question, students responds with a brief answer (often one word), and the teacher evaluates its correctness. This is sometimes called I-R-E.

Then I will introduce a different kind of dialogue that can help us practice getting away from I-R-E. The dialogue is still rather teacher controlled, in the sense that it’s about moves the teacher makes, but it’s a good stepping stones for my students.  For my students, I call it “Echo-Probe-Toss“:

Echo: (You state back the students’ name and what their answer was), “George says he think the net force is up”

Probe: (Ask for reasoning), “George, why did you think the net force is up”

Toss:  (Revoice and put the conversation back to the class): “OK, So George says the net force is up, because the elevator is needs an upward force to keep moving up.  Who else in class said that the Net Force is up, and could say why they agree with George?”

The first thing I will have students to do is discuss with a neighbor which talk moves we just talked about could go with each stage. For example,  “Say More”, or “Pressing” could go under probe.  We will make a list at the board.

Echo-Probe-Toss Game (30-40 minutes):

Then we practice as a class with mock “clicker question”. The rules of the game are– “students” must given honest answer, but when called on they must only give the answer (don’t give reasoning unless the teacher probes). The rules for teachers are you must use the students’ name on each move.

The clicker questions are a mix of silly questions (“Which super power would you most want to have?), biology questions (“when you exercise and lose weight, where does that weight go?”), and questions about LA pedagogy concepts (“Which talk move do you think will be the most useful in the class you teach?”).

Each student will get a chance to practice, and we will pause for discussion as seems helpful. In past, it’s been helpful to point out different flavors of re-voicing that come up (mimicking exactly, vs paraphrasing, vs highlighting, vs. enhancing). It’s been useful to talk about what to do when you haven’t actually understood what the students just said—maybe you zoned out or maybe what they said was confusing. It’s been useful to highlight different ways to “toss” it back as well. Sometimes, even unpacking and comparing specific phrases have been helpful– Why did that last toss back feel very natural whereas some of other ones felt awkward?

I’m still learning to facilitate this:

For me, facilitating this is actually quite tough:

  • Deciding when to pause and discuss (too much, you ruin the flow; too little, you miss learning opportunities),
  • Enforcing the rules (students help with this, though),
  • Deciding how long to let each clicker question go (some lead to interesting conversation which you want to let go, but probably shouldn’t; others fall flat quickly; I want make sure everyone gets a chance, and that everyone gets enough rounds in on a single question)
  • Intervening when someone needs quick help (e.g., a reminder to say a name, rather than a pause and discuss)

One other thing I have a hard time deciding is, when to not enforce the rule when it seemed like a good thing is happening. For example, this happens usually when the “teacher” does a few good turns and the conversation really starts going, and students start just really talking about it, to each other, without any teacher moves. I try at least once to let it happen, and then talk about it–How good facilitation (and good questions) can lead students to actually just start really talking about something? BUT I can’t do that every time, especially if it happens right at the start of a clicker question, because then the “teacher” isn’t getting enough practice with the talk moves.

Striking the right balance is hard. I’m getting better every time, but I still make lots of non-optimal decisions. Right now, thinking about how hard this is for me makes me think about how some researchers I know would probably want to analyze these rehearsal spaces.

First Challenge Lab: Buggy-Cart Collision

Our final “lab” for out Unit on 1D kinematics was a challenge lab where students had to apply both data collection/analysis and problem-solving skills to make a prediction. Students were given a constant-velocity buggy and a low-friction cart on the ramp. Students had to collect data to build models for each that could then be used to predict where to place the cart on the ramp so that it crashes into the buggy driving by the bottom of the ramp. After building their models, students were given the starting position for the buggy, then asked solved the problem and check their predictions.

We had originally wanted to do the  marble rolling down the ramp and into seat of the buggy. The small marble hitting the seat is much cooler than just a collision of two larger objects, but the marble limits the tools students can use. Marbles are too small to be picked up by motion detectors. While marbles can be used to mark position and time with photogates, you cannot easily measure the instantaneous speed (because you don’t know what width of the marble is blocking the sensor very easily). Because we had wanted students to decide what tools they’d like to use, we went with carts in planning out the challenge. That way students would be able to choose motion detectors, stopwatches and metersticks, or photogates to collect data… all tools we’d used previously.

In the challenge labs, students were supposed to first spend time planning their data and analysis (checking it with an instructor before getting equipment), then carry out data collection and analysis, and finally sett up the problem-solving strategy before getting the release point.

Students were supposed to get 2 hours to do all this. However, we had fallen behind (partially due to activities taking too long and me breaking my ankle), so we spent the first 1.5 hours (of a 3 hour class) discussing free-fall and working whiteboard problems. This time was well worth it.  Students got a much deeper understanding of acceleration and much needed practice with working with velocity vs. time graphs to solve problems. We (the other instructor piloting the new curriculum and I) knew we were going to have less time, and so decided with only 1.5 hours to do an abbreviated challenge lab.  Instead of each group having their own setup, we had one big demo setup– a 2.2 meter track with a cart. As a whole class, we talked about what information we would want to know about the buggy and the cart and what different ways we could figure that out. After discussing various options, we opted to use the motion detector for both. The logger pro graphs for position vs.time and velocity vs. time for both cart and buggy were left projected at the front of the room.

The downsides to this abbreviated challenge lab were (1) less student agency about how to collect and analyze /data, and (2) everyone solving the same problem rather than individual problems. The good part was, for a first challenge lab, it got students comfortable with the format.  We did the “deciding how to collect and analyze data” together and they had to solve the problem with their group. I think it significantly reduced the stress that students might have otherwise felt.

Some groups were still a bit stressed, mostly in struggling to turn the actual scenario into a physics problem that could be solved. With HW and whiteboard problems, they get practice turning word problems into physics problem. It was a good struggle, but it made me think that we need to do more whiteboard problems that are quantitative setups rather than word problems. The truth is students need practice with both, but for students to feel confident going into challenge labs, we need better balance.

Every group was able to be successful in making their prediction. Most groups just need conversations reminding them of things they already knew. “Have we solved problems similar to this one in class?”, “What approach did you take in that problem?” “Will that approach work here?” Other students needed conversations about being more organized or systematic. “I see you’ve listed some of the information for the buggy and the cart. When we solved problems like this, what did a good list of knowns and unknowns look like? Does your list meet that criteria yet?”  “In the textbook, you always have to start a problem with a visual overview–a picture, a motion diagram,or a graph. Which of those do you think you could start with?”

About 1/3 of the groups solved for the starting position of the cart using the area under a velocity vs. time graph, 1/3 with an equation, and 1/3 solved using both. Even though every group solved the same problem, most groups were still pretty excited to see their predictions work out. I think one thing is that since the cart accelerates gradually (15 cm/s/s in our setup), it intuitively doesn’t look like they are going to hit at first. You are looking at it going, No Way, and then because the cart has picked up speed, it quickly closes the gap. I think that suspense and surprise helps students to be excited.

I wish I had gotten some pictures or videos, but crutching around class has made me less mindful of that.

Free-fall Circle Counting: I can’t imagine ever not doing this

Today in class, we did a few circle counts for free-fall. [I’m pretty sure I stole this idea from Frank Noschese, who probably stole it from someone else Sadie Estrella, who blogs about it here. I can’t seem to the find the found the blog post where Frank wrote about it].

Of course, counting circles is more from elementary math classes, but it works for college physics really well. So with free fall, students in a circle “count off” the velocity of a thrown object each second, using 10 m/s/s change.

Easy ones might be like 30 m/s, 20 m/s, 10 m/s, 0 m/s, -10 m/s, -20 m/s, -30 m/s.

Medium ones like  25 m/s, 15 m/s, 5 m/s, -5 m/s, -15 m/s, – 25 m/s

Hard ones like:  18 m/s, 8 m/s, -2 m/s, – 12 m/s

I had student “circles” look more like motion diagrams, so a big “U” where the positive velocities head one way and the negative velocities head back down. I didn’t spend too much time on this, but we certainly could have. The activity was pretty enlightening for students, but what this activity actually did was provide us with fodder for later sense-making. Our conversations all day were always referencing back to the counting activity.

For example, one clicker question later in day was what does velocity vs. time graph look like for an arrow shot straight into the air and falling back down. Our discussion of the different answer choices was immensely helped by talking about it in relationship to the circle counting. “We keep counting down by -10, the count never turns around”.  Another clicker question about the acceleration at the top, circle counting really helped. “There’s never a time where you don’t count down by “10”… even if you are the person who says zero… you had to count down by ten, and the next person had to count down by 10″. No one is allowed to say the same number the previous person said. The final question it helped with was, “A ball is dropped from a height of 45m and takes 3s to hit the ground. What’s the instantaneous speed just before impact?” Tempting to say 15 m/s.

Anyway, if you are thinking of trying this. I highly encourage it. It forces participation in good way. Formative assessment is pretty easy. It provides lots of opportunities to “stop” and discuss issues that come up.


  1. I think it’s probably important for students to say the units and to enforce it (and maybe even say “moving at a velocity of – 15 m/s”). Later students will start incorrectly count free-fall distance by 10m (each second). This came up in our 45 m in 3 seconds clicker question, where at least one student arrived at answer of 15 m/s… by counting down from 45m three times to 15m.  We had to talk about how that would be constant velocity of – 10 m/s.  Forcing them to say units or the phrase won’t eliminate this, but it can’t hurt?
  2. Plan ahead on what examples you want to give, what possible “stop and discuss” issues might come up. A good time to discuss is after mistakes, or even after any long pauses. Students tend to pause more when going from positive to negative, especially if it’s like 2 m/s to – 8 m/s.  In skip counting good questions come from, “How did you know to say __ without counting?” The discussion can be about strategy, but it can also be about keeping it connected to what’s physically happening.
  3. If doing it again, I would definitely do a few with the whole class, but then maybe give them examples to work out in smaller groups, and then “present” their motion diagram count. The whole class is nice, because it models and you can have those “stop”, but small group might work well, too.

Further extensions of this activity I didn’t do, but would consider for next time could include:

— Skip counting, like only saying the velocity every so often (having students count time in between)… so a drop from rest, that only counts velocity every 3 seconds would be First person says “0 m/s”, Second person just says (1s), Third person says  (2s),  But next person has to say” -30 m/s”… etc,… so (4s), (5s), then “-60 m/s. “

— Counting in intervals other than one second… I think 1/10th of a second is pretty important.

— Counting with other accelerations.

–[Much later]  Adding in distances:  Like for an acceleration of 2 ft/s/s from rest, you would count “0 ft/s”, the next person would count “2 ft/s” and take 1 ft step (because average velocity was 1 ft/s for that s”… then the next person would say, “4 ft/s” but would take 3 ft step, etc.  Our tiles are 1ft, so this wouldn’t be hard. It’s like a live motion diagram.

Week 3: 80% Wrong on a Clicker Question [Sign of Acceleration]

Last week, students worked through a lab using photogates to investigate how the speed of a cart changes as it descends a ramp. We didn’t have much time to talk about it too much because my broke ankle situation meant having to cut class early to see the doctor. Most students, however, were still able to make good interpretations of the intercept and slope of their linear equation for velocity vs. time. This was helped by having students to a “quick and dirty” experiment to figure out how much speed the cart gained in traveling 1 second (all groups adjusted the location of the 2nd photogate until it measured 1 second later from the first). It was also supported by asking students to think about what value was typical for the first photogate each trial, and why that stayed relatively constant. Both of these gave them something to hang their hat on when interpreting slope and intercept.

In this lab case, the intercept and slope are both positive, so today we ventured into talking more specifically about the sign of acceleration in various cases. Here’s how the day started:

  1. Warm up to review the photogate lab:  Question was “if your linear equation from our last lab had been v = 15 cm/s/s t + 10 cm/s, (1) how fast was the cart moving through the first gate, (2) how much speed does it gain each and every second? In asking students to say how they knew, we ended up drawing the graphs and talking about slopes and intercepts.
  2. A very brief mini-lecture to review definition of acceleration from their reading, how it connects our lab and the slope of velocity vs time, and some modeling of how to interpret the meaning of acceleration.
  3. A clicker question where students find acceleration at a particular time from a v vs t graph. Lots of discussion was needed here. Since the graph had an intercept, many students merely calculated v/t rather than dv/dt.
  4. A similar clicker question where students find acceleration for a graph but with negative slope.
  5. A very quick review of sign conventions for velocity vectors that we’ve established. (Knight in the algebra-based text always has positive be to the right).
  6. A clicker question with a motion diagram: the object is on the right side of the origin, slowing down as it approaches the origin. Students are asked to identify sign of velocity and position. Some discussion here, but pretty good here.
  7. 2nd clicker question with same motion diagram asking about sign of acceleration. About 80% said velocity was negative, which is incorrect.

What do you do when 80% of students have the wrong answer in a clicker question? My move here is to draw specific attention to a tool. I didn’t ask students to discuss. I didn’t lecture. I asked students to work in groups to draw a velocity vs time graphs for the situation, and to use the idea that the slope of velocity vs time. Many groups needed help with correct velocity vs time, but most of it involves reminding them that we had just said in the previous clicker question that the velocity was negative.

We drew a consensus velocity vs. time graph at the front and agreed that since the slope was positive, the graph implied that acceleration was positive. Now and only now I asked students to tell me why 80% of them had answered the acceleration was negative… it was the first time in class that students really opened up about wrong ideas… here’s what we got.

  1. “I thought that since the velocity was negative, the acceleration had to be negative”
  2. “I was thinking acceleration is v/t, so a negative velocity divided by a positive time is negative”
  3. “I was thinking that slowing down has to mean a negative acceleration, it’s taking away speed”

Then only then did I ask for, “How can we make sense of why the velocity vs. time time graphs says that acceleration is positive.” We got lots of good ideas here

  1.  Slowing down should be negative acceleration, but your velocity is already negative… its like the two negative, means the acceleration must be positive to counteract the negative velocity.
  2. You can’t think of acceleration as v/t, it’s about the change in v; we can see in the graph, that even though the velocity is negative (below the axis), the change in velocity is always positively going “up”
  3. If it had like -30 m/s velocity to start and later you have -20m/s velocity, it’s almost like it gained +10 m/s velocity… it’s less in velocity debt, and a positive acceleration helped get it less in velocity debt.

I added my vector interpretation of how acceleration “changes’ velocity vectors by either “widdling them down” or “pulling them out”, and how the sign of acceleration is just about which way the acceleration vector points.

I think “order” matters here… while one-on-one in office hours, I have and still would ask student to explain to me their thinking about what I know to be the wrong answer. Often times, I say back to them their idea and why it makes sense, and then say, “I want to tell you about another way of thinking about it. Hear me out, it’s different than your idea, but I want you to understand my idea like I think I’ve understood yours.”

In class, however, I want students to get in the practice of using tools we’ve developed. We spent all that time talking about acceleration as slope of velocity vs time, so I want us to use that. Once we were pretty sure we were almost all wrong, sharing your wrong thinking was less risky. I encouraged students to share their previous wrong thinking through an analogy I learned (I think) from David Hammer. To tell students to, “You know when you sometimes meet someone new, and you immediately don’t like them, but you don’t know why?” I tell them that having ideas in physics is like that… sometimes you have an idea, but you aren’t sure why you thought it. Once you figure out, “why” you don’t like the person (e.g., maybe they remind you of someone), you can let go of not liking them. We need to figure out “why” it’s so tempting to think that acceleration was negative.

Week 2: Broken Angle Puts the Brakes on Blog Updates

Tuesday afternoon this week, I broke my ankle playing ultimate frisbee, so I’m a little behind on the blog updates. Here’s a quick synopsis of the week with some reflection:

Monday: Maintaining Good Facilitation Choices Even When Tired

Monday Evening in Learning Assistant Pedagogy, we discussed and watched some videos from periscope. We watched two videos of Learning Assistants interacting with group as they engage in collaborative activities. We had some decent conversation, but everyone is always a bit tired by 6:00-7:30 pm. I have even noticed myself that I make poorer facilitation decisions in the evening–a lot of times out of sheer exhaustion / laziness.  For example, the day could have ended with a short summary discussion of things we’ve learned about being an “LA”. Through our discussions, ideas like, “making space for students to talk,” “not getting so excited about your own explanation that you take over the conversation, “Restating what students just said to keep the conversation going,” “asking other students if they agree or disagree”, etc. These are all really great insights. And while they came up in discussion, a summary conversation at the end could have helped crystallized these, rather than being merely ephemeral notions that come and go. I chose to end class at the end of the second video discussion, rather than quickly generate a list of good ideas about being an LA that had come up. A second poor decision I made was when a quieter student tried to gain access to the conversation, I cut off another student to give the floor to the quieter student. I did it in a way that came off as awkward. On a better day, I might have said something quickly, “Sarah, you go, and then lt’s hear from Janet.”

Tuesday:  Learning that we have packed too many things

In our revised algebra-based physics course, we have learned this week that we have tried to cram too much in. The days have felt a bit hectic. Not that any one day was bad, but if every day feels that hectic, it grinds on everyone. Some of our activities are just too long; some days we just have too many different things happening. For future planning, we have a goal of  prioritizing better and doing more with less.

Wednesday: Returning LAs are really fantastic to have

In LA prep, we had some really good physics conversations about velocity vs. time graphs. A good range of facility, but students worked well together. One thing that has been great is returning LAs. They really know how to collaborate well (even when it’s thing they already know). It’s nice that they can be there to model that. Instructors have given several compliments about how good those returning LAs are in their classes. One professor even noted that the LA might be better at asking good questions to students than they are.

Thursday: Short Class because of Orthopedic Appointment

I had to shorten class because of the my ankle, so our problem of having too many things was going to be made even worse. But it was a good exercise in cutting out the unnecessary. After a few clicker questions to review piece-wise constant velocity vs time graphs, basically all we did that day was a lab… learning how to use photogate to measure speed, and then taking data for how velocity changes for a cart on an incline ramp. Definitely some revising of the labs was needed, but it overall went well.

Friday:  Physics Tutor Workshop

A year ago, the university started centralized tutoring in the library. We hire physics majors to tutor for intro physics and astronomy. We’ve had a few common complaints about tutors, so we decided to do a brief workshop with them. I’ll be running that this afternoon. Part of the issue is that physics majors go through Matter and Interactions and the algebra-based course starts more traditionally with kinematics. It’s not helpful when the physics majors start by saying, “So you start this problem with the momentum principle.” Other complaints have been that physics majors do not understand second semester topics very well–I think this is especially true for optics. The third complaint has been that some tutors do not “circulate” well. There might be 15 students in the tutoring room, and the tutor spends all the time with just a few students. I may give more details about the workshop in a future post.

Blog at WordPress.com.

Up ↑
